Corrugated Sheet

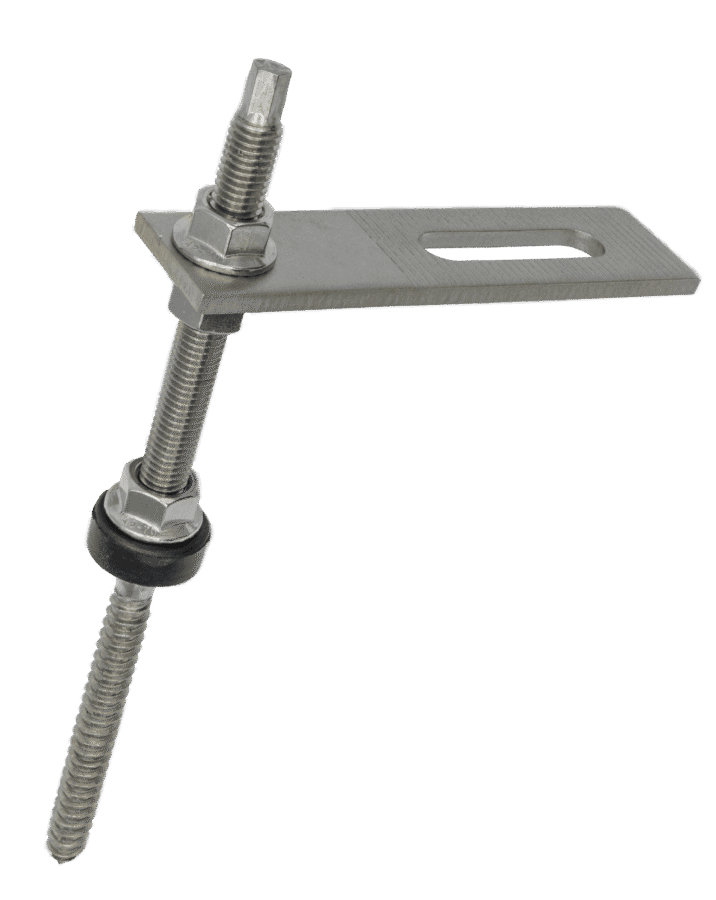

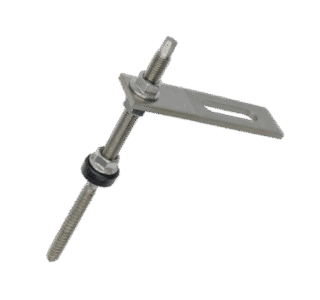

Lag Screw with Mounting Plate
Ref: 301052
Lag screw with a mounting plate for solar panel installation on corrugated metal roofs.
Material
Stainless steel - SUS304
Weight
0,232
Roofing Types
Corrugated metal roof
Technical data
| Description | Height | Width | Depth | Material |
|---|---|---|---|---|
| Hook for slate roofing - simple - flat | 302 mm ±2 | 30 mm ±0,5 | 139,73 mm ± 3 | SUS304 |
| Box size | Weight (kg)/pc | Weight (kg)/box | Quantity/box (pcs) | Qty/pallets (pcs) | Boxes/pallet | Pallet size |
|---|---|---|---|---|---|---|
| 391x200x177 mm | 0,229 | 5,725 | 25 | 2700 | 108 | 1150x1050x1020mm |
